-> AC Compressor / Panasonic AC Compressor
PANASONIC AIR CONDITIONER COMPRESSOR (SCROLL TYPE)
| Power Supply | Refrigerant | Model Name | Nominal Capacity |
|---|---|---|---|
| 3 PH 380V/50HZ | R22 | C-SB 263 H8B | 31,293 BTU |
| C-SB 303 H8A | 40,356 BTU | ||
| C-SB 373 H8A | 49,590 BTU | ||
| C-SB 453 H8A | 60,534 BTU | ||
| C-SC 753 H8H | 104,652 BTU | ||
| C-SC 903 H8H | 123,462 BTU | ||
| R410a | C-SBN 303 H8D | 33,516 BTU | |
| C-SBN 353 H8D | 44,460 BTU | ||
| C-SBN 373 H8D | 48,222 BTU | ||
| C-SBN 453 H8D | 56,088 BTU |

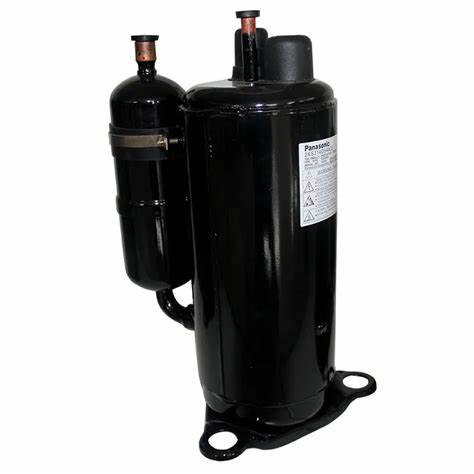

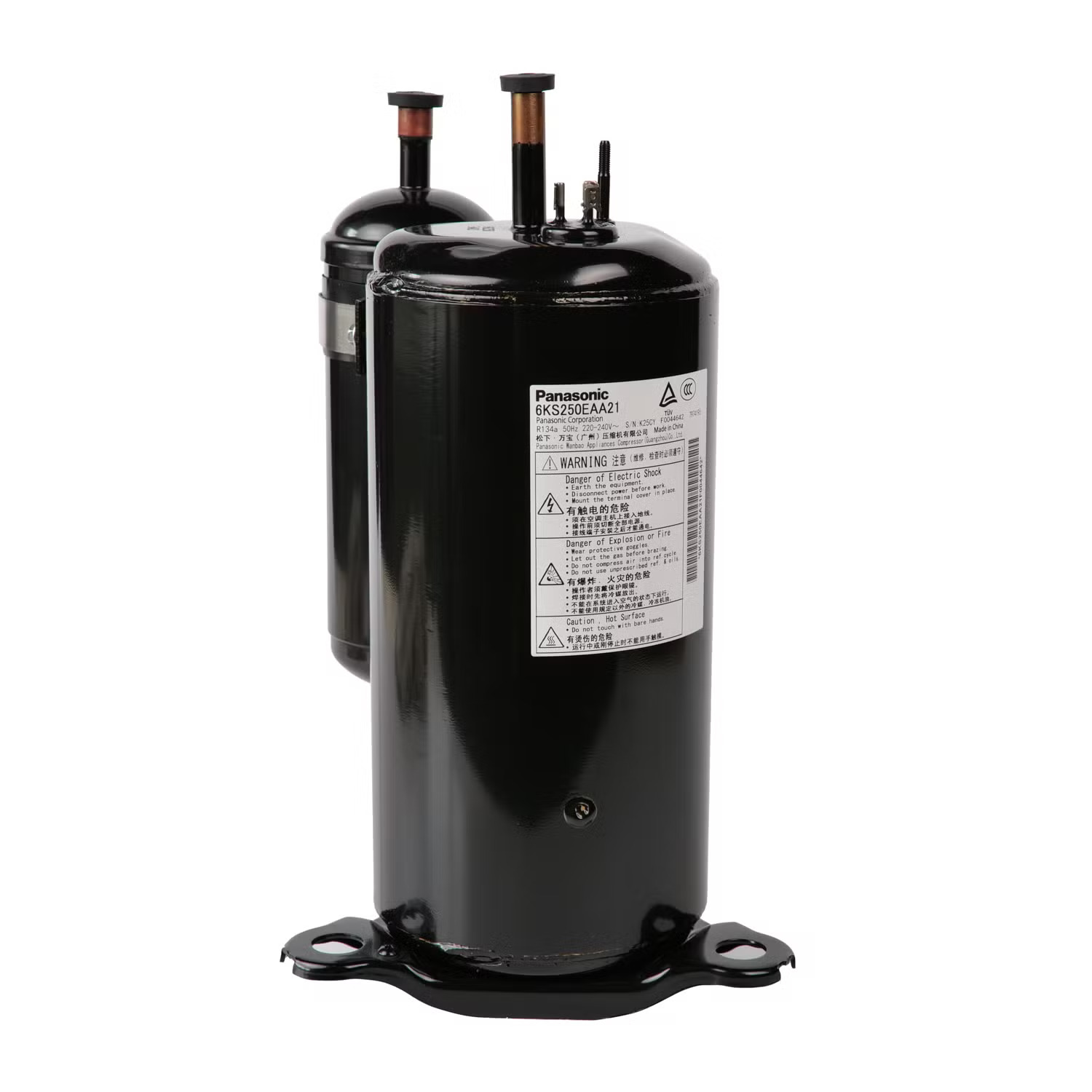

PANASONIC AIR CONDITIONER COMPRESSOR (ROTARY TYPE)
| Power Supply | Refrigerant | Model Name | Nominal Capacity |
|---|---|---|---|
| 220V/50HZ | R-22 | 2P21T 225 AZB | 12,000 BTU |
| 2V32S 225 AUA | 18,000 BTU | ||
| 2V42S 225 AUA | 24,000 BTU | ||
| 2V47W 225 AUA | 30,000 BTU | ||
| R-410A | 5KS 225 EAA21 | 18,000 BTU | |
| 5VS 295 EAA21 | 24,000 BTU |
